Многофункциональный генератор FY2300A

The Cyclone® field programmable gate array family is based on a 1.5-V,
0.13-μm, all-layer copper SRAM process, with densities up to
20,060 logic elements (LEs) and up to 288 Kbits of RAM. With features like
phase-locked loops (PLLs) for clocking and a dedicated double data rate
(DDR) interface to meet DDR SDRAM and fast cycle RAM (FCRAM)
memory requirements, Cyclone devices are a cost-effective solution for
data-path applications. Cyclone devices support various I/O standards,
including LVDS at data rates up to 640 megabits per second (Mbps), and
66- and 33-MHz, 64- and 32-bit peripheral component interconnect (PCI),
for interfacing with and supporting ASSP and ASIC devices. Altera also
offers new low-cost serial configuration devices to configure Cyclone
devices.
The Cyclone device family offers the following features:
■ 2,910 to 20,060 LEs, see Table 1–1
■ Up to 294,912 RAM bits (36,864 bytes)
■ Supports configuration through low-cost serial configuration device
■ Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards
■ Support for 66- and 33-MHz, 64- and 32-bit PCI standard
■ High-speed (640 Mbps) LVDS I/O support
■ Low-speed (311 Mbps) LVDS I/O support
■ 311-Mbps RSDS I/O support
■ Up to two PLLs per device provide clock multiplication and phase
shifting
■ Up to eight global clock lines with six clock resources available per
logic array block (LAB) row
■ Support for external memory, including DDR SDRAM (133 MHz),
FCRAM, and single data rate (SDR) SDRAM
■ Support for multiple intellectual property (IP) cores, including
Altera® MegaCore® functions and Altera Megafunctions Partners
Program (AMPPSM) megafunctions.

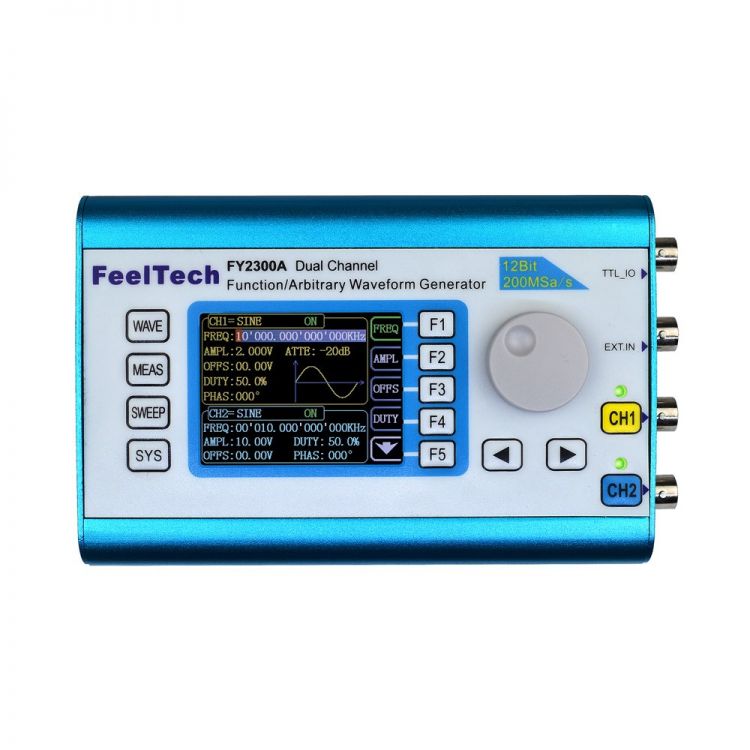

Thank you for purchasing our FY2300 series dual channel Function/Arbitrary waveform generator.
If you want to control the instrument through PC software, please strictly follow the installation steps below:
1. Disconnect the instrument with PC.
2. Install CH340 Driver (included in the CD). Choose 32 bits version or 64 bits version according to your system type.
3. run «fy2300 pc control software v1.8 setup.exe».
(Note:Because this program is writed by VB, it may be mis-recognized as virus by some antivirus software or firewall. Please ignore the alert and install normally. If the «fy2300 pc control software v1.8 setup.exe» file is deleted by antivirus software or firewall, please turn off the antivirus software and firewall first, then unzip «FY2300 PC Contrl Software V1.5 setup.rar» again, then run «FY2300 PC Contrl Software V1.8 setup.exe». After the installation is finished, restart the antivirus software or firewall and add «FY2300 PC Contrl Software.exe» into Trust or White List in antivirus software or firewall setting.)
4. Connect the instrument to PC USB port by USB cable and turn on the power switch.
5. Click the shortcut icon of «FY2300 PC Control Software» on the desk. The software will recognize the instrument automatically.
(If the software cannot work normally, it may beause you connect the instrument first without insall the CH340 driver. The PC system install the driver automatically, which is wrong choice. In this case please uninstall the driver in Device Manager and install the PL2303 driver again).
If you have any problem or suggestion, please feel free to contact us.
Web:www.feeltech.net
E-mail:feeltech@126.com/344299068@qq.com
Tel:+86 037168997005Step 3: Install Signal Generator.exe program
